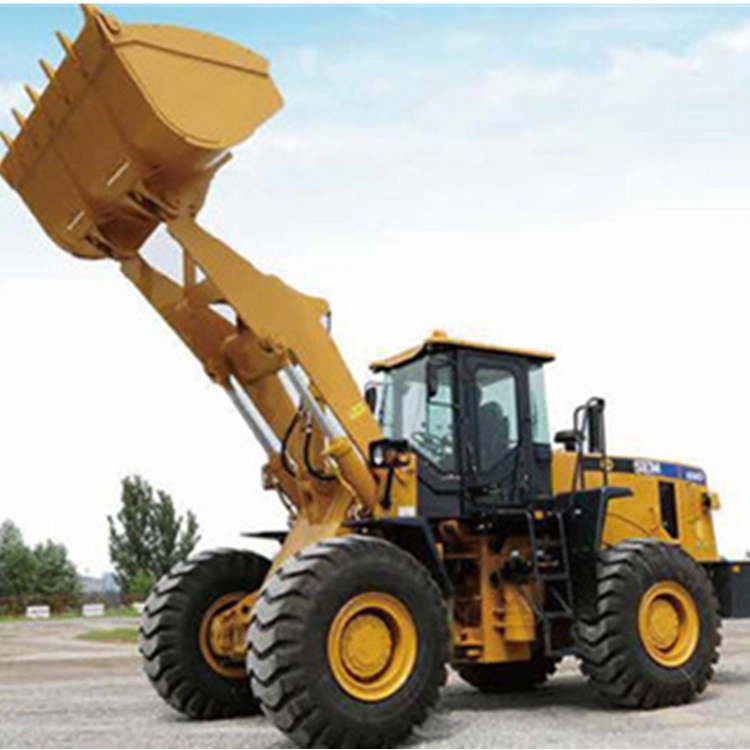

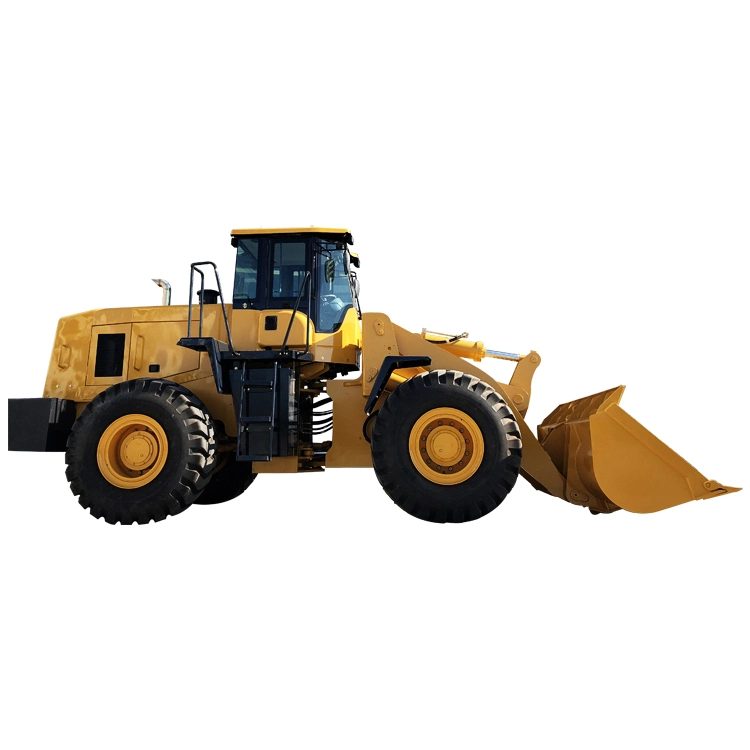

Cheap For Sale SEM656D Chinese 5ton Front End Loader
Technical Features
Detailed Images
Why Choose Us
High Productivity
Best-in-class Reliability and Durability
Excellent Fuel Economy
Outstanding Operator Comfort
Technical Features
| Main Specifications | ||
|---|---|---|
| Rated Load | 5000 kg | |
| Operating Weight with Standard Bucket | 16500 kg | |
| Bucket Capacity | 2.7-4.5 m³ | |
| Wheel Base | 3300 mm | |
| Overall Dimension (mm) | 8085*2963*3463 | |
| Engine | ||
| Model | Weichai WP10G220E343 | |
| Rated Power | 162 kW | |
| Rated Speed | 2000 r/min | |
| Displacement | 9.7 L | |
| Operating Specifications | ||
| Breakout Force | 177 kN | |
| Dump Clearance | 3102 mm | |
| Articulated Angle | 38±1 ° | |
| Implement Hydraulic | ||
| Implement System Type | Single load sensing flow sharing system | |
| Boom Raise Time | 5.13 s | |
| Hydraulic Cycle Time | 9.3 s | |
| System Presure Setting | 18 Mpa | |
| Transmission | ||
| Type | Countershaft | , power shift |
| Transmission Gears | F4/R4 | |
| Torque Converter Type | Sigle stage 3 elements | |
| Maker & Type | TR200 | |
| Forward I/ Reverse I | 7.8/7.8 km/h | |
| Forward II/ Reverse II | 15/15 km/h | |
| Forward III/ Reverse III | 22/22 km/h | |
| Forward IV/ Reverse IV | 39/39 km/h | |
| Brake System | ||
| Service Brake | Dry & caliper, air to oil control | |
| Parking Brake | Drum type shoe brake, spring applied & oil released | |
| Steering System | ||
| System Type | Flow amplifying | |
| Steering Pump Type | Piston pump | |
| System Presure Setting | 16 Mpa | |
| Steering Angle (L/R) | 38±1 ° | |
| Axle | SO32 | |
| Main Drive Type | Spiral bevel gear, single stage | |
| Final Drive Reduction Type | Planetary type, singe stage | |
| Rear - Oscillating +/- | ±11 ° | |
| Tires | ||
| Size | 23.5-25 | |
| Type | Bias | |
| Layer | 16 | |
| Textured Type | L3/E3 |
